SV540

Batch Soldering

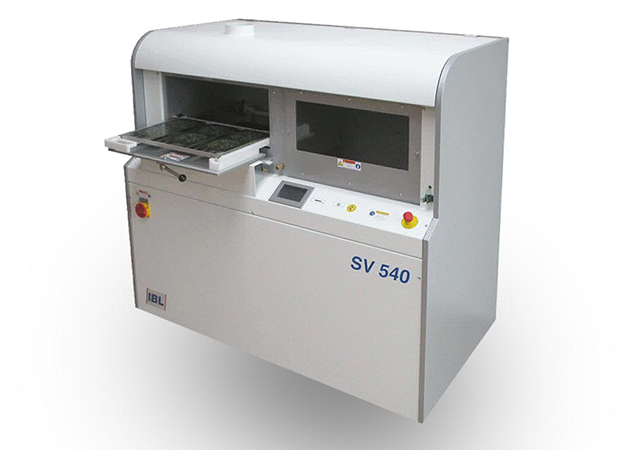

The environmentally friendly SV540 is a fully operational
stand-alone reflow vapour phase soldering machine.
This entry system is a manual front loader, including two
chambers with low fluid consumption. Very easy to use
in which the heat is transferred by condensing vapour.
The system is compliant for profiling with standardized
manufacturing specifications without the necessity of
program or parameter set-up. Thanks to the low
soldering temperature and homogeneous heat transfer,
the thermal stress on soldering assemblies is kept at the
minimum. Its small footprint makes this machine ideal for
development, prototyping, small series production and
includes standard soldering profiles. Soldering is
possible regardless of assembly weight.



Specifications
Options
Information
Downloads
Specifications (Fr) Specifications (Eng)

Width

1450 mm (57.09“)

Depth

800 mm (31.50“)

Height

1400 mm (55.19“)

Weight

340 kg (lbs)

Max. PCB size

540 x 360 x 85 mm (21.26 x 41.17 x 3.35“)

Max. load on single carrier

3 kg (6.61 lbs)

Liquid agent filling

13 kg (28.66 lbs)

Water connection

½“ / 2,5-5 bar

Max. heating capacity

5,2 kW

Average power consumption

2,8 kW/h

Power supply

400/230 VAC, 50/60 Hz

Main fuse

16A „gl“ or „C“

Specifications (Fr) Specifications (Eng)

• Adapter for double sided PCBs
• Stainless steel grid
• Measurement channel for thermal profiling
• Signal light tower
• ReSy – a device for repair of QFPs and BGAs
• External cooling device with automatic standby control

• Oxygen free soldering without overheating of components
• Patented maintenance and vibration free transport system
• Patented automatic or time-controlled soldering process
• Fluid level monitoring
• Global bottom cooling
• 5” HMI touch display
• Program storage including standard soldering programs
• Illuminated observation window into the solder chamber
• SD slot for storing of profiles and machine data
• Simple access for maintenance
• Fluid filter system
• Exhaust connection
• Cool handling – transport system in cool area

Features

  • Powerful unit for single and series production
  • Board sizes up to 560 x 360 x 80 mm
  • Small footprint
  • Low energy and fluid consumption with 2-chamber design and integrated heat exchanger
  • Touch panel for easy operation, solder automatic, program storage
  • TE-Option with 2 temperature measuring channels for thermal profile monitoring and recording
  • Maintenance-free transport system (patented)
  • Integrated fluid filter system
  • Observation window into process chamber
