SV260

Batch Soldering

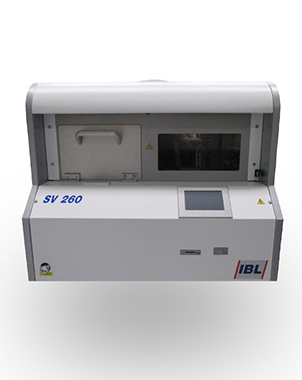

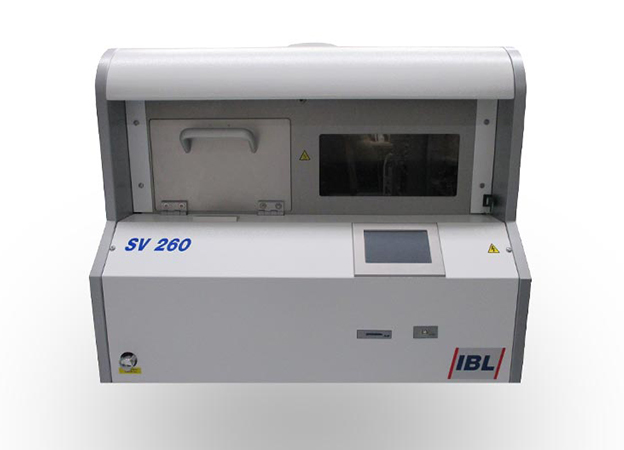

The SV260 is an automated table top reflow soldering machine
with two chamber design in which the heat is transferred by
condensing vapour. The system is compliant for profiling with
standardized manufacturing specifications without the necessity
of program or parameter set-up. Thanks to the low soldering
temperature and homogeneous heat transfer, the thermal stress
on soldering assemblies is kept at the minimum. Together with its
simple and safe soldering process this unit is ideal for the use in
the development and prototyping. This entry system is a manual
front loader, includes standard soldering profiles and is easy to
move. Soldering is possible regardless of assembly weight.



Specifications
Options
Information
Downloads
Specifications (Fr) Specifications (Eng)

Width

770 mm (30.31“)

Depth

710 mm (27.95“)

Height

680 mm (26.77“)

Weight

110 kg (242.51 lbs)

Max. PCB size

260 x 300 x 70 mm (10.24 x 11.81 x 2.76“)

Max. load on single carrier

2,5 kg (5,51 lbs)

Liquid agent filling

3 kg (6,61 lbs)

Water connection

½“ / 2,5-5 bar

Max. heating capacity

2,1 kW

Average power consumption

0,9 kW/h

Power supply

208-240 VAC, 50/60 Hz

Main fuse

16A „gl“ or „C“

Specifications (Fr) Specifications (Eng)

• Adapter for double sided PCBs
• Stainless steel grid
• Measurement channel for thermal profiling
• ReSy – a device for repair of QFP’s and BGA’s
• External cooling device
• Table on rolls including a chiller for easy relocation as one unit

• Oxygen free soldering without overheating of components
• Patented maintenance and vibration free transport system
• Patented automatic or time-controlled soldering process
• Integrated cooling fan
• 5” HMI touch panel
• Program storage including standard soldering programs
• Illuminated observation window into the solder chamber
• SD slot for storing of profiles and machine data
• Exhaust connection
• Cool handling – transport system in cool area

Features

  • Optimized for laboratory operation, prototyping, rework and small series production
  • Board size up to 300 x 260 x 80 mm
  • Table top unit with easy front loading
  • Low energy and fluid consumption with 2-chamber design and integrated heat exchanger
  • Easy operation, solder automatic, program storage
  • Live temperature monitoring without high temperature profiler
  • Maintenance-free transport system (patented)
  • Observation window into process chamber
  • 230 Volt operation
