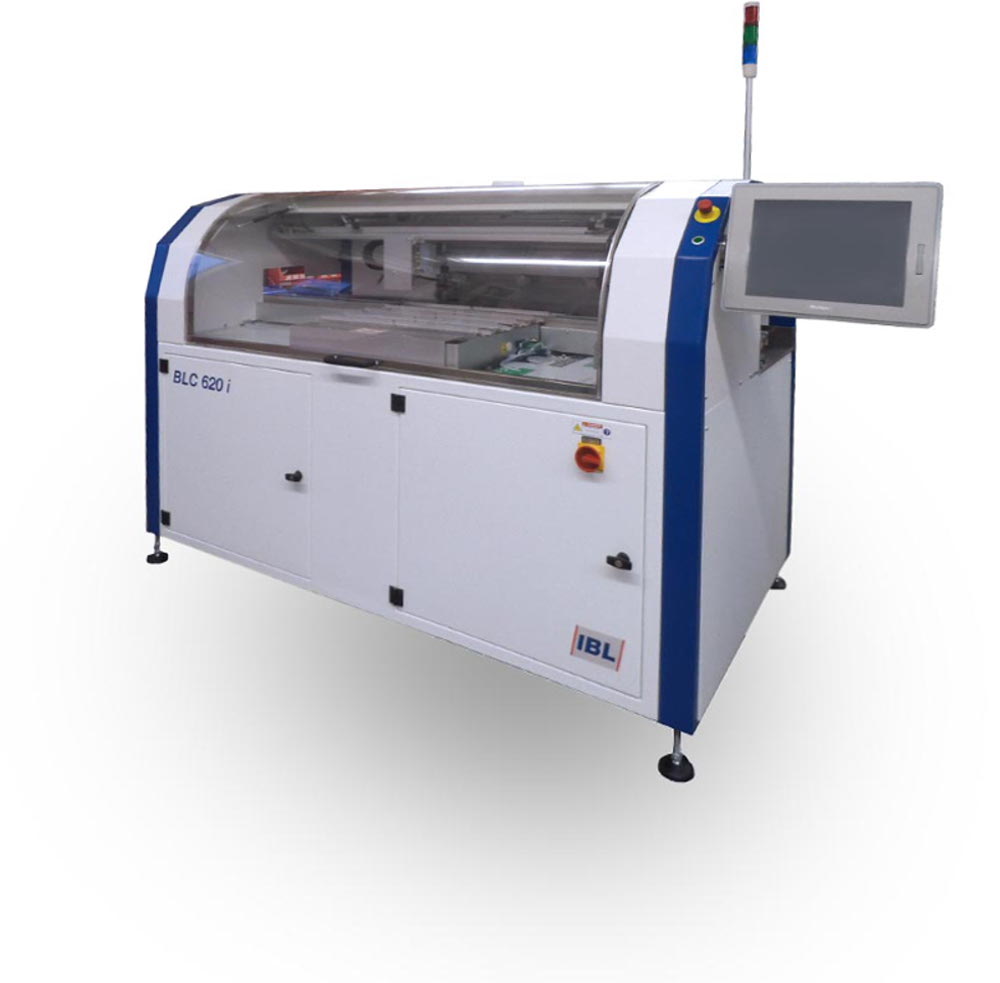

BLC Inline

Premium Inline Reflow Vapour Phase Soldering Oven



The BLC inline model is an environmentally friendly and flexible
system for high quality soldering. The most complex soldering
applications can be easily mastered with this machine. A high mix of
large and small components can simultaneously get soldered without
overheating any of them. This machine can be fully integrated into a
production line and if necessary also be used in the batch mode. The
Intelligent Profiling System gives the user full control of temperature
rise to reach the best soldering profiles. Together with the unique
patented Soft Vapour Phase there is no fear of exceeding
temperature increase rates of components. Their outstanding low
energy consumption and exhaust air volume compared to other
soldering systems result in even lower running costs. Excellent heat
transfer in an inert oxygen free atmosphere without the need of costly
nitrogen. The two-chamber system with a large user-friendly touch
display makes this machine easy to set up and use. Soldering is
possible regardless of assembly weight with the same profile.



Specifications
Options
Downloads
Specifications (Fr) Specifications (Eng)

Width

2020 mm (75.73“)

Depth

2490 mm (98.03“)

Height

1470 mm (57.87“)

Weight

920 kg (2028.25 lbs)

Max. PCB size inline modus

630 x 400 x 55 mm (24.80 x 15.75 x 2.17“)

Max. PCB size batch mode

650 x 540 x 80mm
(25.59 x 21.26 x 3.15”)

Max. load on single carrier

7 kg (15.43 lbs)

Liquid agent filling

20 kg (40.10 lbs)

Water connection

½” / 2,5 – 5 bar

Max. heating capacity

7,8 kW

Average power consumption

3,2 kW/h

Power supply

400 / 230 VAC, 50/60Hz

Main fuse

20A „gl“ or „C“

Specifications (Fr) Specifications (Eng)

Process extensions
Infrared preheating

Variety of options for pcb cooling

Patented Rapid Cooling System (RCS)

Up to 3 additional temperature measurement channels

MultiLevel Mode for rapid switching between different soldering heights

Nitrogen flooding of the cooling and process chamber


Software extensions

Online Temperature Recording Software (TRS) for data analysis and storage including alarm and
event log

Pilot mode, measurement channel for easy temperaturecontrolled soldering and setting up of
profiles

Heating power monitoring

Various traceability extensions, for automated processes and tracking, ready for Industry 4.0


Hardware extensions

Automatic adjustment of transport lane width and work piece carrier

Larger transport width

Measurement carrier for thermal profiling

Batch carrier and stainlesssteel grid

Adapter for double sided boards on batch carrier

TEAdapter for simple plugin of PCBthermocouples

Heavy Duty HD model for loads up to 14 kg

Exhaust system extensions

UPS Uninterruptable Power Supply

ReSy a device for repair of QFPs BGAs

2nd Emergency Stop

Storage compartment for carrier

Integration of a bypass system

Chiller for inside or outside use with automatic standby control

Features

Comfortable 15” TouchScreen mounted on a swiveling arm
Integrated PC, allows permanent data collection and professional data management
Permanent data collection
Unlimited program memory with a large amount of sample programs
Network capable
Password protected operation levels
Energy management system
Intelligent Profiling System (IPS) for highend thermal profile control
Buffer in the loading and unloading areas
Automatic loading and unloading Work Piece Carrier
Signal light tower
Patented vibration and maintenance free transport system
Two chamber design and medium recovery results in a very low fluid consumption
Fluid level control and automatic filtering
Integrated cooling fans
Minimal maintenance and wear due to all moving parts mounted outside of the process chamber
Easy access to solder chamber for cleaning and maintenance purposes
Observation window into the solder chamber
Exhaust connection
Cool handling transport system in cool area
