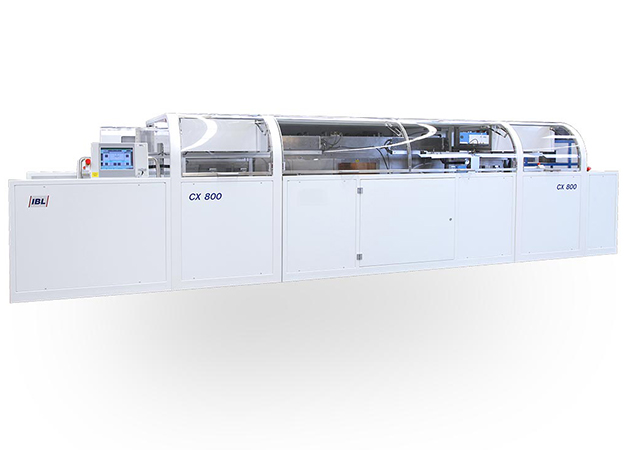

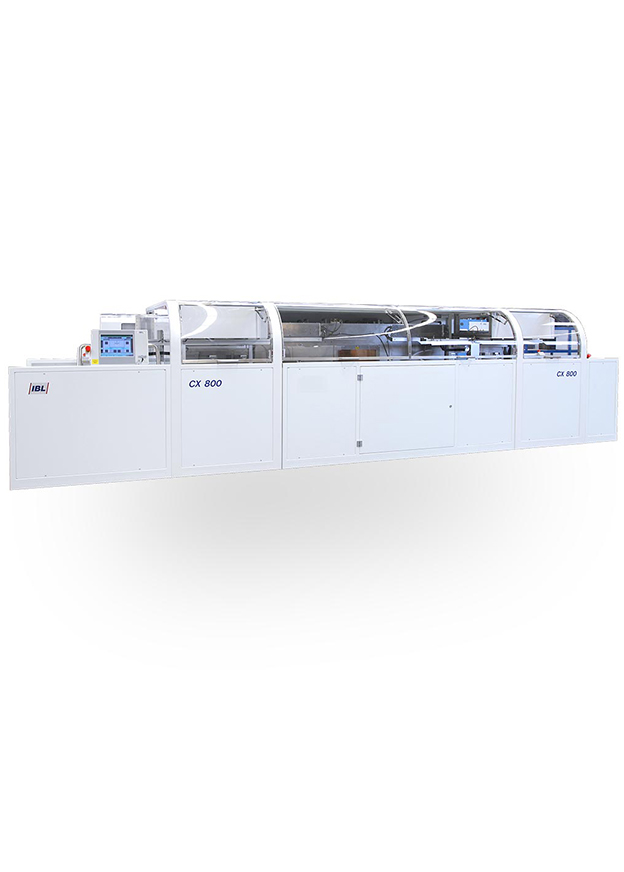

CX600/CX800

Inline Vapor Phase Reflow

The CX Series is a machine dedicated for high volume and a variety of board sizes. The machine is capable of running in inline or in batch mode. Patented Double Soft Vapour is a fea ture with simultaneously two work piece carriers thus improving the throughput. Thanks to its unique design it also works simultaneously with one work piece carrier being loaded automatically while the other one can be loaded manually. One solder chamber, two loading positions and heating chambers each makes the machine perfect for hig h throughput allowing to reach cycle times of 20 seconds per assembly. Its size allows to load a large amount of boards simultaneously onto a work piece carrier thus letting them all get soldered in one go. While one carrier is in the solder chamber the se cond gets unloaded and at the same time loaded with fresh board again. Soldering is possible regardless of assembly weight with the same profile and with a high repeatability.

Nous contacter

Toutes nos solutions

Caractéristiques

Options

Description

Téléchargements

	Caractéristiques (Fr)	Specifications (Eng)
Depth		1980 mm (77.95“)
Length		5950 mm (234.25“)
Height		1500 mm (59.06“)
Weight		1980 kg (4365.15 lbs)
Max. PCB size batch mode		680 x 646 x 65 mm 26.78 x 25.43 x 2.56”
Max. PCB size inline mode		680 x 305 x 45 mm 26.78 x 12.01 x 1.77”
Max. load on single carrier		7 kg (15.43 lbs)
Liquid agent filling		40 kg (88.18 lbs)
Water connection		½“ / 2,5-5 bar
Max. heating capacity		7,6kW
Average power consumption		3,9 kW/h
Power supply		400/230 VAC, 50/60Hz
Main fuse		16A „gl“ or „C“

	Caractéristiques (Fr)	Specifications (Eng)
• Infrared pre-heating • Batch carrier and stainless-steel grid • Adapter for double sided boards for batch carrier • Online Temperature Recording Software (VP-Control) for data analysis and storage • Multi-Level Mode for rapid switching between different soldering heights within the vapour blanket • Up to 2 measurement channels per Work Piece Carrier (WPC1 and WPC2) • UPS – Uninterruptable Power Supply • ReSy – a device for repair of QFPs and BGAs • Exhaust system extensions • Chiller for inside or outside use with automatic standby control

• Comfortable touch screen display with integrated PC
• Permanent data collection
• Unlimited program memory with a large amount of sample programs
• Pilot mode, measurement channel for easy temperature-controlled soldering and setting up of profiles
• Energy management system
• Heating power monitoring
• Network capable
• Password protected operation levels
Intelligent Profiling System (IPS) for high end thermal profil e control
• Buffer in the loading and unloading area
• Automatic loading and unloading Work Piece Carrier
• Automatic adjustment of transport lane width and work piece carrier
• Signal light tower
• Patented vibration and maintenance free transport system
• Multiple chamber design and medium recovery results in a very low fluid consumption
• Fluid level control and automatic filtering
• Medium recovery system
• Integrated cooling fans
• Minimal maintenance and wear due to all moving parts mounted outside of the process chamber
• Cool handling – transport system in cool area
• Easy access to solder chamber for cleaning and maintenance purposes
• Observation window into the solder chamber
• Exhaust connection
• Several Emergency stop buttons
• Storage compartment for carrier

brochure-cx-2017-fr.pdf

IBL’s CX600/CX800 is fully automated inline vapor phase soldering solution. It provides precise, high quality results at medium to high volume throughput. The machines feature a standardized SMEMA interface for easy inline integration.

Features

Vapor Phase Inline System for high volume throughput
A cycle time of under 20 sec. per board is possible
Carrier sizes from 680 x 650 x 80 mm up to 825 x 650 x 80 mm
Fully automatic inline operation
Two independent stations for loading and unloading of carriers
Loading and Unloading conveyors with buffer function
Three internal process chambers with automatic airlocks
Lowest energy and fluid consumption with Energy management system
Highest precision and process quality with patented Soft Vapor Temperature Control (SVTC)
Easy one step profile set-up with Intelligent profiling system (IPS)
Wide variety of adjustable solder profiles
Lead-free and leaded soldering on one machine with one fluid
Live temperature monitoring with IBL Software without profiler
Traceability and documentation with IBL Software
Low maintenance due to Cool Handling (all moving parts outside process chamber)
Maintenance-free transport system (patented)
Integrated automatic fluid filter system
Observation window into process chamber
Batch and inline operation available
Siemens Interface available
